Electrical control

DC Power Panel

DC power supply panel for substations, power plants and critical equipment operation during power interruption.

Request Electrical Cabinet QuoteView Supporting Electrical Control
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
DC Power Panel exterior
GZDW · DC Power and Automation

Product profile

Application and Cabinet Scope

Substations, power plants and base stations providing DC operating power for high-voltage cabinets, emergency lighting and backup power.

  • Dual AC input automatic switching improves continuity.
  • Microcomputer monitoring, battery inspection and fault alarm functions.
  • Temperature compensation and communication options support unattended operation.

Technical Parameters

ModelGZDW
Rated VoltageDC 230V/115V
Rated Current / CapacityConfigured by project capacity
Protection GradeIndoor >= IP30; outdoor or harsh environments >= IP54 (according to GB/T 19826-2014 / GB 4208)
StandardDL/T 5044 / IEC 61204

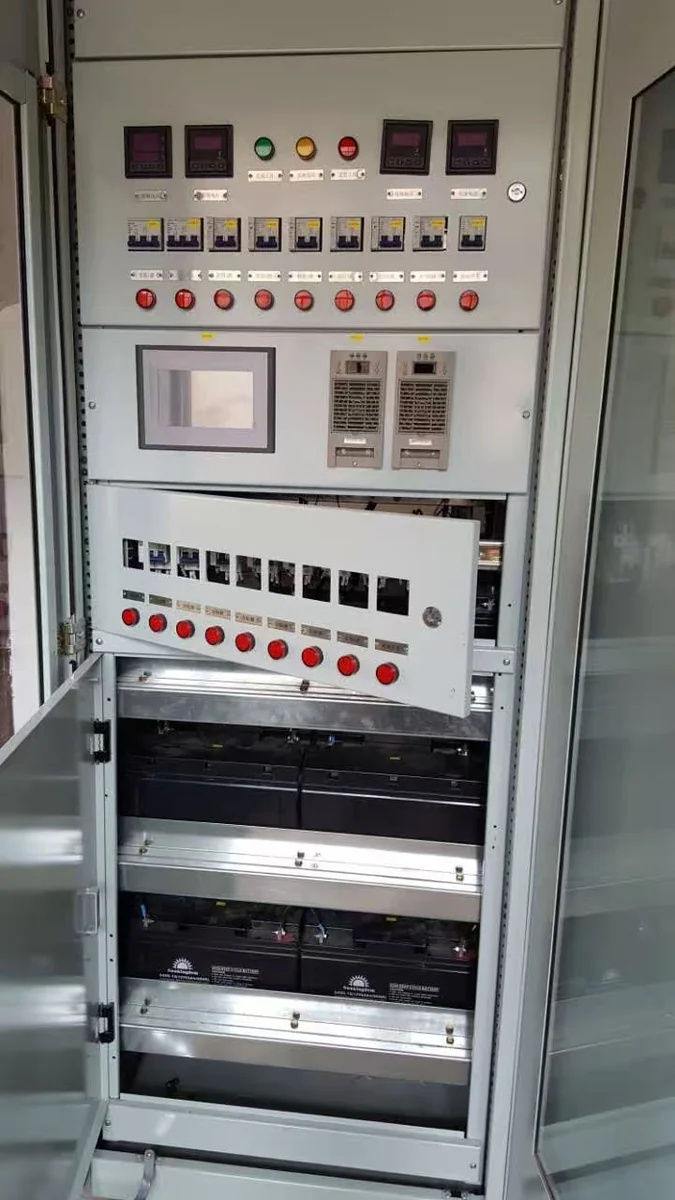

DC Power Panel internal structure

Configuration support

Designed Around Project Power Requirements

Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.

  • Project-specific cabinet layout, component selection and wiring scheme.
  • Protection, metering, monitoring and communication functions can be configured.
  • Supports factory inspection, delivery coordination and installation communication.
