Gas Insulated Ring Main Unit
Compact ring main unit for distribution networks, branch supply, box substations and photovoltaic transformer rooms.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Ring network power supply, branch distribution, HV rooms of box-type substations, PV substations and urban distribution networks.
- Compact structure for installation inside box-type substations.
- Fully insulated design helps reduce influence from condensation and dust.
- Grounding switch and mechanical interlock improve operation safety.
- Optional motor operation and remote communication interface.
- Can be equipped with grounding fault and short-circuit indicators.
Technical Parameters
ModelXGN15-12(F)
Rated Voltage12kV
Rated Current / Capacity630A/1250A
Protection GradeIP3X/IP4X
StandardGB 3906 / IEC 60298
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
Related products
More Supporting Electrical Control
Medium-voltage SwitchgearMetal-clad switchgear for receiving, feeding and protection in 10 kV and 35 kV power systems.

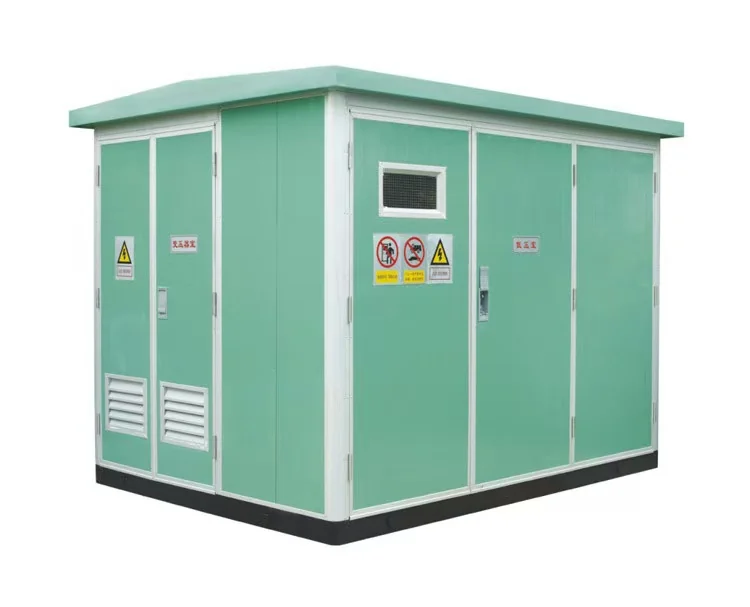

European Box-type SubstationPrefabricated substation integrating high-voltage room, transformer room and low-voltage distribution for industrial and site power supply.
