European Box-type Substation
Prefabricated substation integrating high-voltage room, transformer room and low-voltage distribution for industrial and site power supply.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Residential communities, industrial parks, PV stations and construction sites where 10 kV power is stepped down to 0.4 kV and distributed locally.

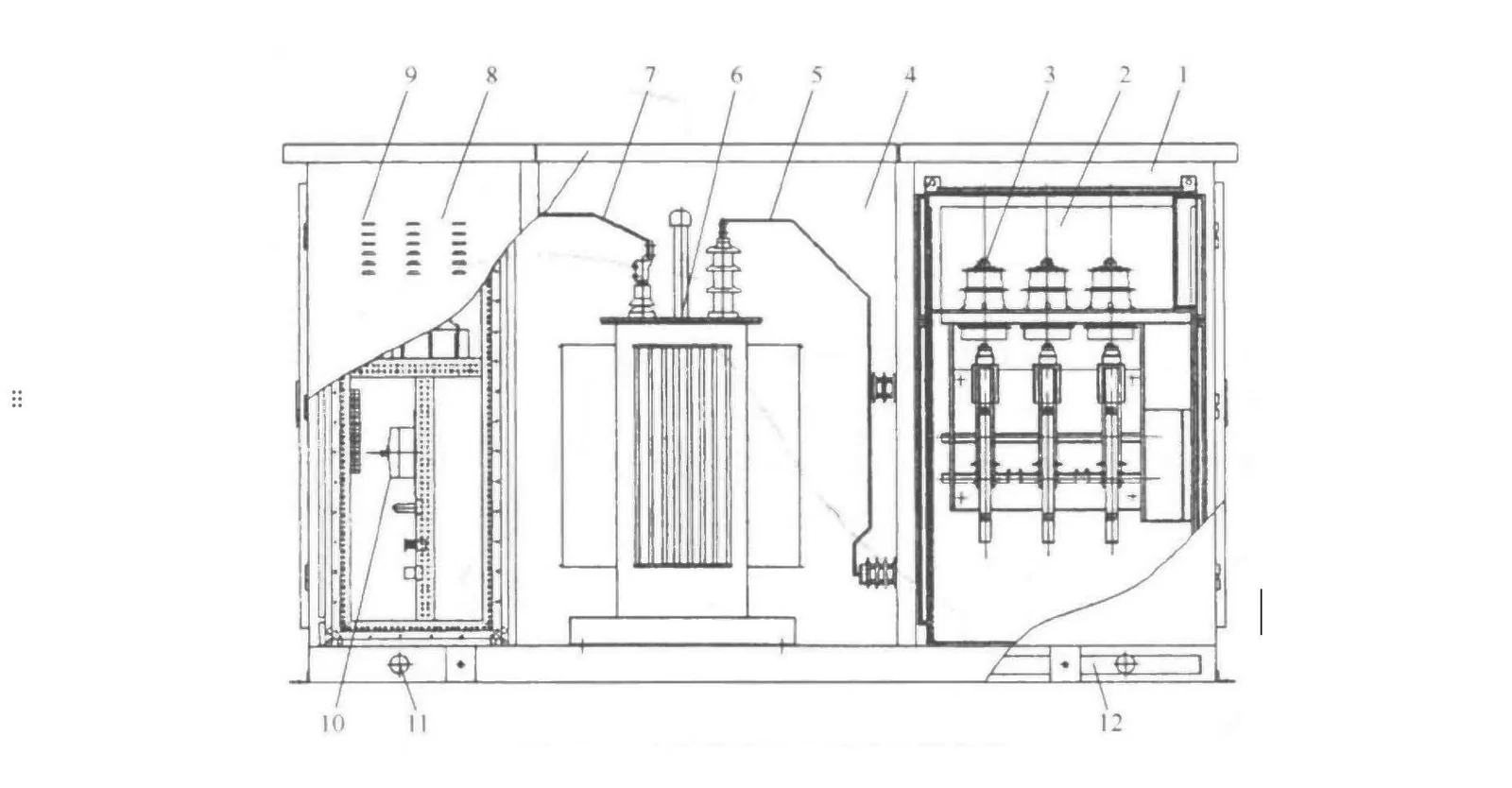

- Independent HV, transformer and LV compartments simplify maintenance.
- Small footprint and factory pre-commissioning reduce site installation time.
- Enclosure options include color steel, stainless steel and non-metal materials.
- Temperature control, ventilation, smoke alarm and RS485 communication can be configured.
- Supports PV reverse power, dual power switching and project-specific layouts.
Technical Parameters
ModelYBM/YBP
Rated VoltageHV10kV, LV0.4kV
Rated Current / Capacity50-1600 kVA (oil-immersed S11/S13/S20 or SC(B) dry-type)
Protection GradeIP33-IP54
StandardGB/T 17467 / IEC 61330
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
