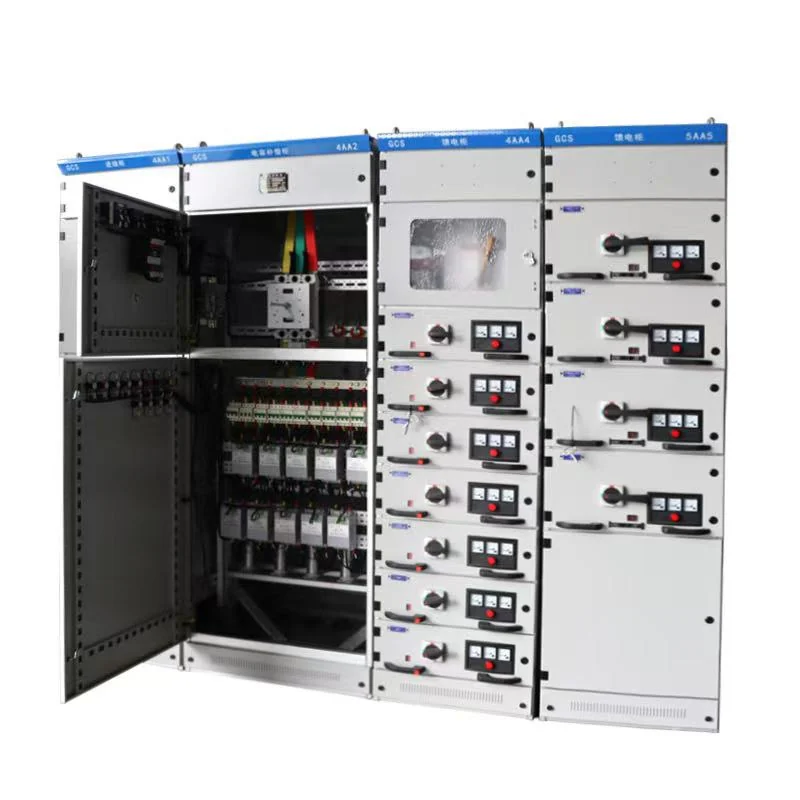

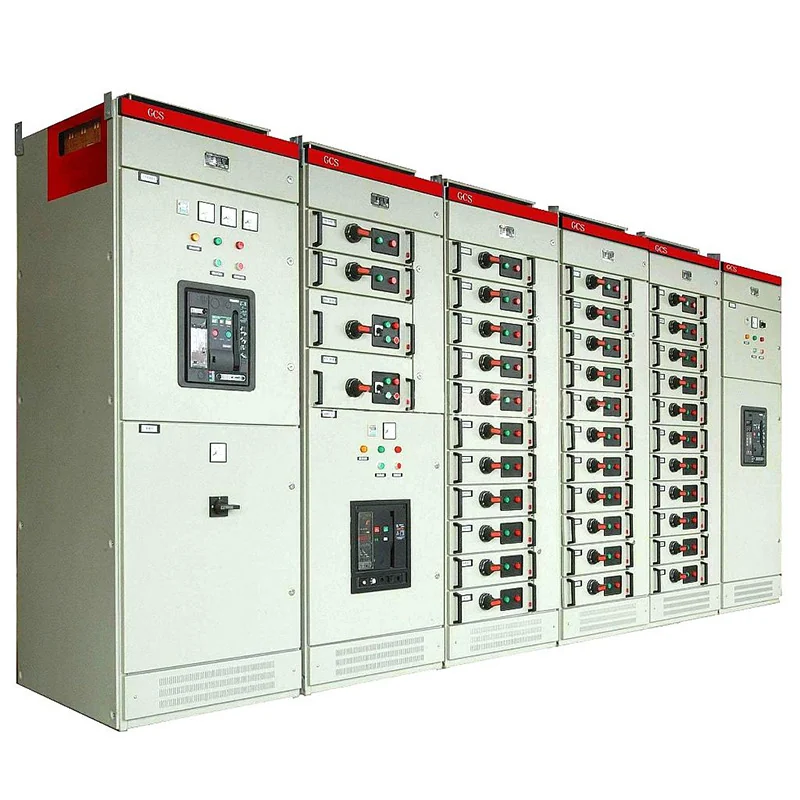

GCS Low-voltage Withdrawable Switchgear
Withdrawable low-voltage cabinet for power plants, petrochemical facilities, metallurgy and motor control centers.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Power plants, petrochemical, metallurgy and other industrial projects requiring main distribution and motor control center functions.
- 8MF frame structure with rear top busbar arrangement.
- 160 mm drawer units and separated compartments improve maintenance safety.
- Mixed drawer configuration supports main distribution and motor control.
Technical Parameters
ModelGCS
Rated VoltageAC 400V/690V
Rated Current / CapacityHorizontal busbar <= 4000A, drawer unit <= 400A
Protection GradeIP30-IP41
StandardGB 7251.1 / IEC 61439-1&2
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
Related products
More Supporting Electrical Control
GGD Low-voltage Fixed SwitchgearFixed low-voltage switchgear for main distribution, incoming feeders, bus coupling and high-current outgoing circuits.

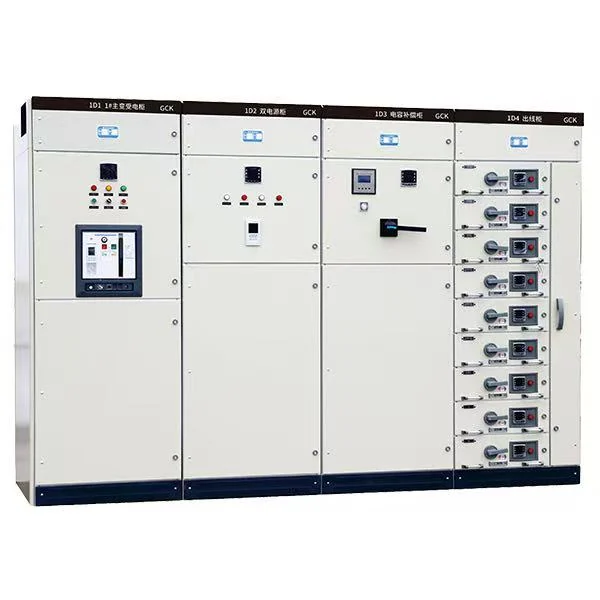

GCK Low-voltage Withdrawable SwitchgearCompact withdrawable switchgear for workshop distribution, water treatment, mining sites and motor start-stop control.
