Electrical control

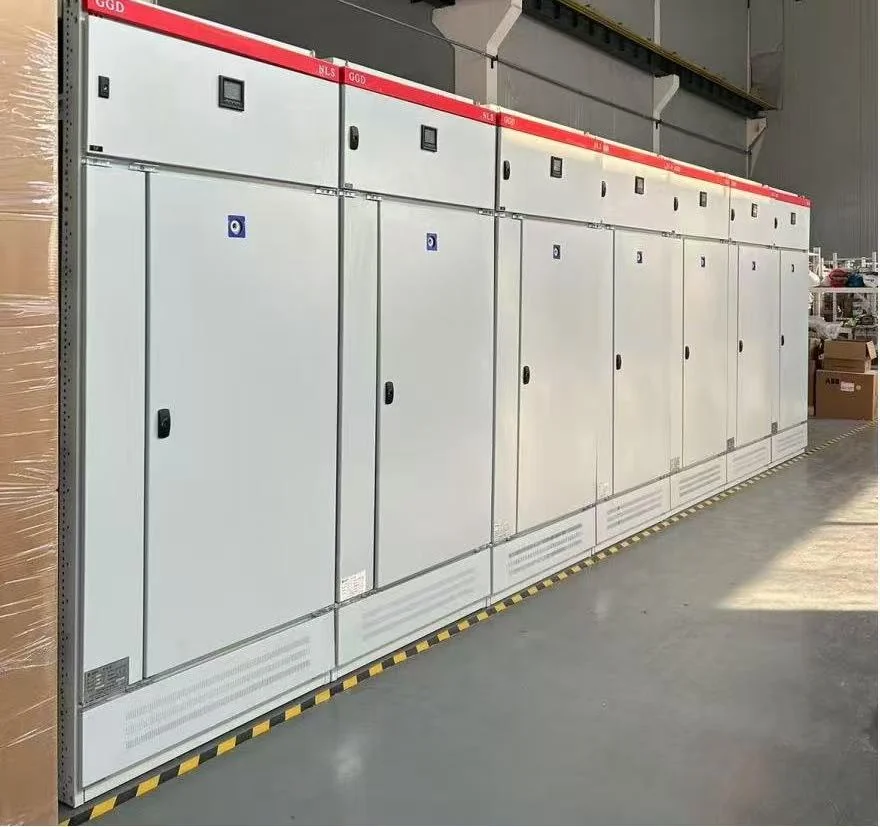

GGD Low-voltage Fixed Switchgear
Fixed low-voltage switchgear for main distribution, incoming feeders, bus coupling and high-current outgoing circuits.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Factory and building main distribution, incoming feeder cabinets, bus-tie cabinets and large-capacity outgoing circuits.

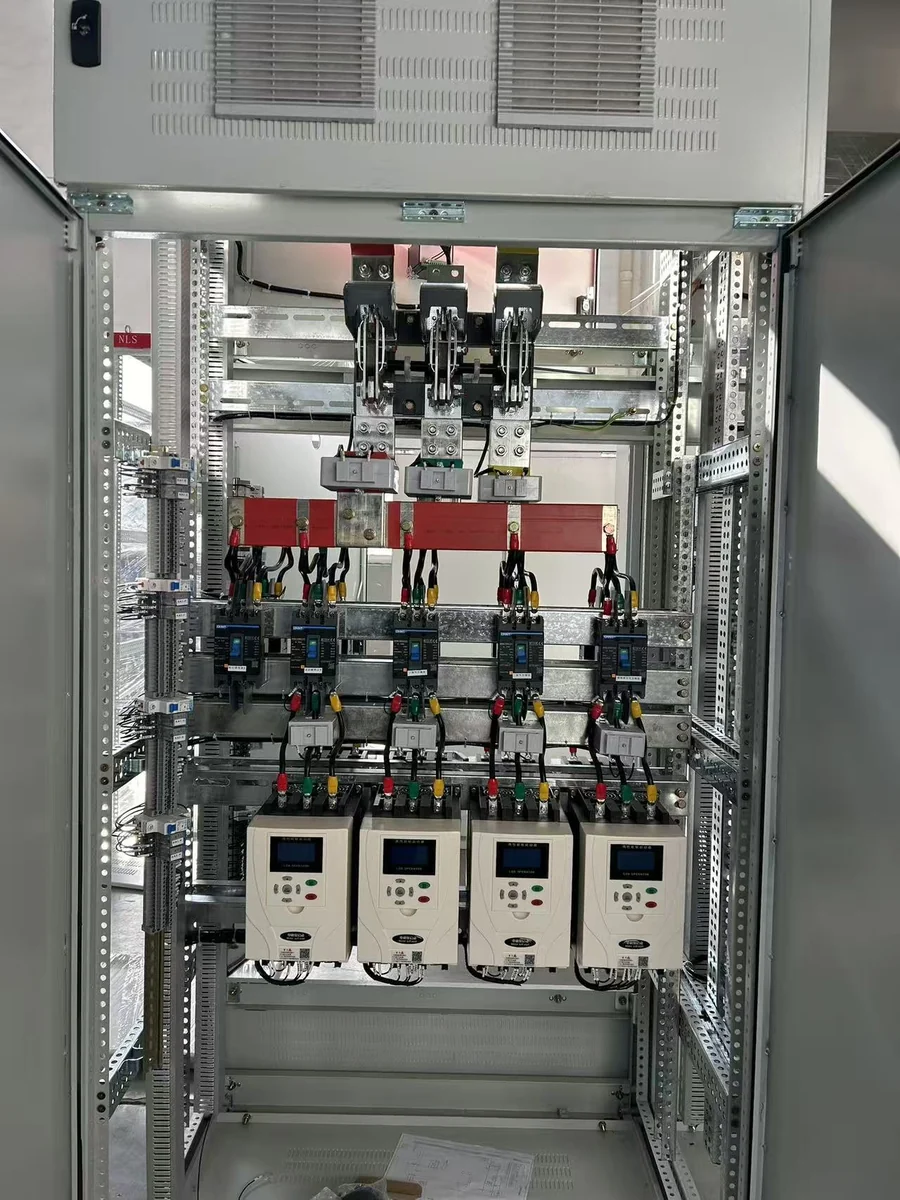

- 8MF steel frame with stable structure and flexible circuit schemes.
- High short-circuit withstand capability for industrial and building distribution.
- Removable top cover helps installation and maintenance.
Technical Parameters
ModelGGD1/GGD2/GGD3
Rated VoltageAC 380V/660V
Rated Current / Capacity100A-3150A
Protection GradeIP30-IP54
StandardGB 7251.1 / IEC 61439-1
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
