Integrated Distribution Box
Outdoor integrated distribution box combining metering, protection and compensation for rural grids, pumping stations and lighting networks.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Rural grid upgrades, outdoor distribution areas, pump stations and road lighting systems requiring metering, protection and compensation in one cabinet.

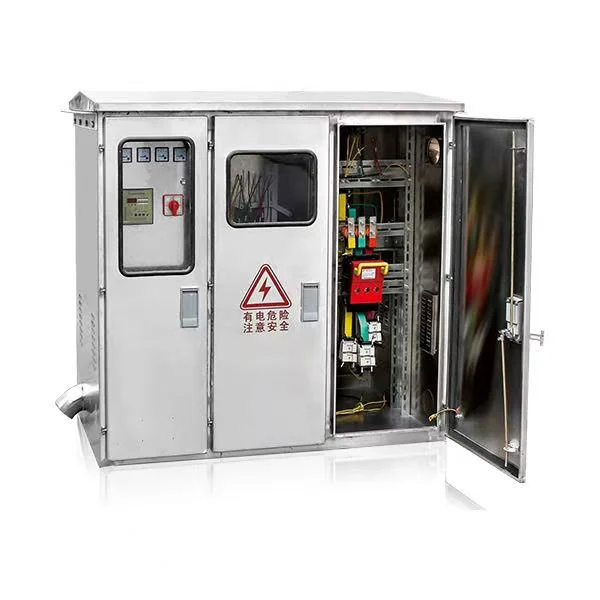

- Integrates metering, protection and compensation in one outdoor cabinet.

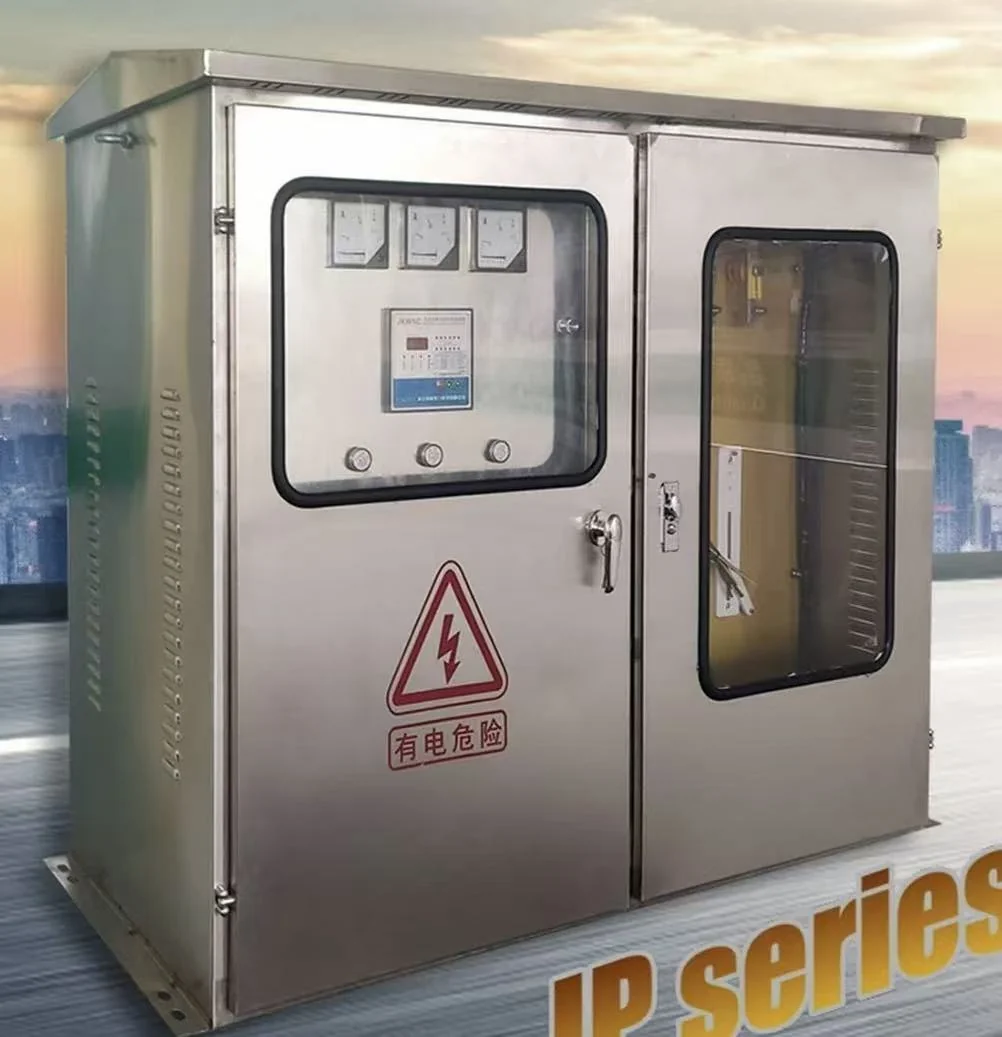

- Anti-corrosion enclosure is suitable for outdoor distribution areas.
- Lightning protection, leakage protection and voltage protection can be included.
Technical Parameters
ModelJP
Rated VoltageAC 400V/230V
Rated Current / Capacity100A-630A
Protection GradeIP43-IP54
StandardGB 7251.3 / IEC 61439-3
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
