Electrical control

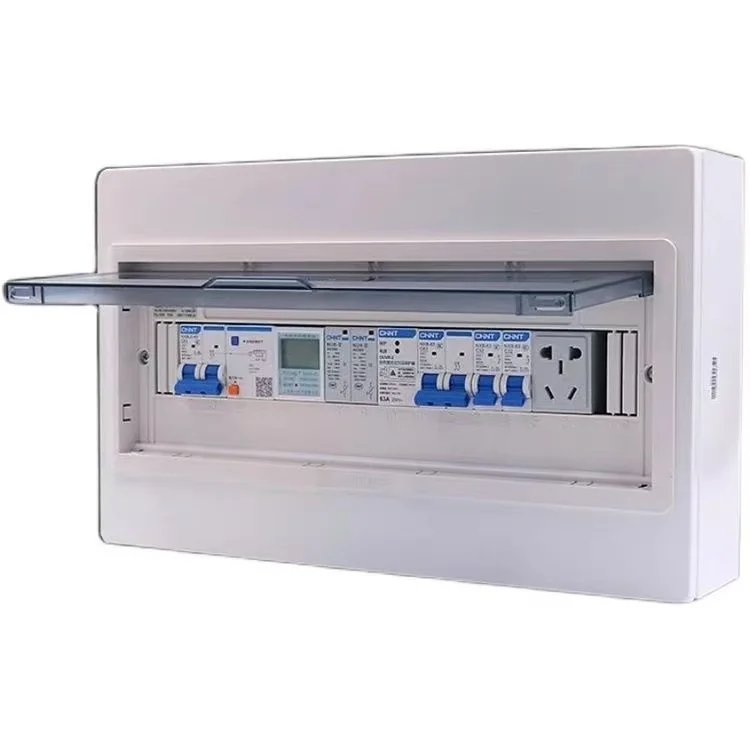

Lighting and Metering Distribution Box
Terminal distribution and metering box for residential buildings, offices, shops and branch circuit protection.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Residential buildings, offices and retail premises for terminal power distribution, metering and branch circuit protection.
- Modular branch protection structure supports terminal distribution.
- Transparent door, flame-retardant materials and RCBO / SPD options.
- Metering and protection functions help improve daily maintenance visibility.
Technical Parameters
ModelPZ30/XM
Rated Voltage230V/400V
Rated Current / CapacityConfigured by project capacity
Protection GradeIP30-IP40 (indoor)/IP54 (outdoor)
StandardGB 7251.3 / IEC 61439-3
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
