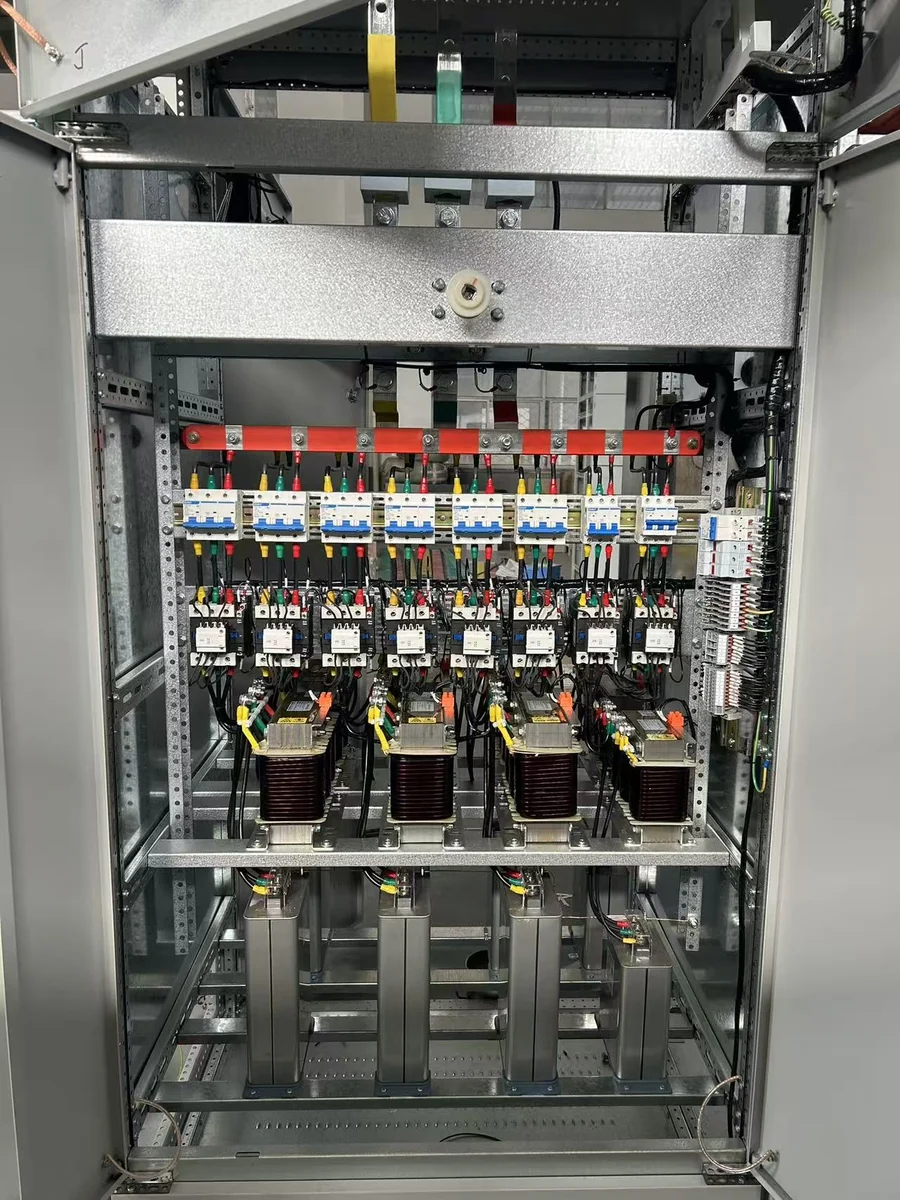

Low-voltage Capacitor Compensation Cabinet
Reactive power compensation cabinet for improving power factor, reducing line loss and supporting low-voltage switchgear systems.
Optional Feature: Remote OperationAll products can be configured with remote operation support when the project requires remote monitoring or control.
Product profile
Application and Cabinet Scope
Used with GGD / GCS / GCK / MNS systems to improve power factor, reduce line loss and improve grid quality.
- Self-healing capacitors and contactor or thyristor switching options.
- Overvoltage, overcurrent and temperature protection improve operation reliability.
- Can be paralleled with common low-voltage switchgear systems.
Technical Parameters
ModelGGJ
Rated VoltageAC 400V/450V
Rated Current / CapacityConfigured by project capacity
Protection GradeIndoor >= IP30; outdoor >= IP54 (according to GB/T 15576-2020 / GB/T 4208)
StandardGB/T 15576 / IEC 60831
Configuration support
Designed Around Project Power Requirements
Electrical control products are selected according to voltage level, rated current, site environment, enclosure protection, control logic and communication requirements. For mining, aggregate, photovoltaic and industrial power projects, the cabinet layout can be coordinated with production equipment and site operation needs.
- Project-specific cabinet layout, component selection and wiring scheme.
- Protection, metering, monitoring and communication functions can be configured.
- Supports factory inspection, delivery coordination and installation communication.
